Aluminium Plant and low loader ramps - Type VFR 105

Products > Aluminium Loading ramps > Plant & Low loader ramps > Type VFR 105

If you are loading plant machinery onto low loaders or flatbeds, then these versatile ramps are ideal. They are suited to loading machines equipped with pneumatic tyres, solid wheels, and rubber or steel tracks. They are made from a special aluminium construction which is strong, durable and weather-resistant.

These ramps can be supplied with a lip, a hinged end or with a hook which fits into a guide rail. Guide rail is available in lengths of 2600mm in black or galvanised steel.

(see standard ramp sizes below).

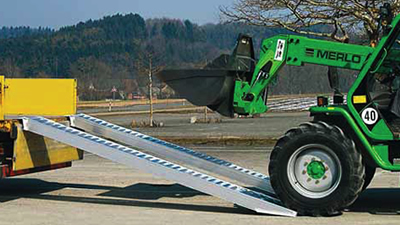

Aluminium Low loader ramp
Click on small images to enlarge
Aluminium Low loader ramp Aluminium Low loader ramp Aluminium Low loader ramp Aluminium Low loader ramp
Available options:
Also see

Plant ramp
Type AVS 150
Aluminium Plant ramp

Plant ramp
Type AVS 170
Aluminium Plant ramp

Plant ramp
Type AVS 200
 Aluminium Plant ramp

Low loader ramp
Type VFR 120
Aluminium Low loader ramp

Section & Plan details
Folding plant ramp
Length and bed height
Plant ramp track surface
Width spreadable to 520mm
Connection options
Plant ramp
Plant ramp
Plant ramp
Lip with steel pin
Hinged fitting
Bottom hook
Standard ramp sizes
Length L (mm)
Width
(mm)
Capacity (kgs/pair) axle distance 2m
hook and hinge support
Capacity (kgs/pair)
axle distance 2m
lip support
Bed Height H
30% gradient (mm)
Weight (kgs/ea) hook and hinge support
Weight (kgs/ea) lip support
2005
390
15130
11771
460-600
35
33
2405
390
12610
11010
540-720
41
39
2805
390
10810
9890
620-840
46
45
3220
390
9420
9250
710-960
52
50
3470
390
8740
8660
760-1030
56
53
4005
390
7090
7110
880-1180
63
62
2005
520
20179
15690
460-610
46
44
2405
520
16820
14680
540-720
54
51
2805
520
14420
13180
620-840
61
59
3220
520
12560
12340
710-960
69
67
3470
520
11650
11550
760-1030
74
72
4005
520
9460
9480
880-1180
87
82
Note: Non-standard sizes are generally no problem. Other dimensions available on request.
