Wheelchair entrance ramp - Type SBK

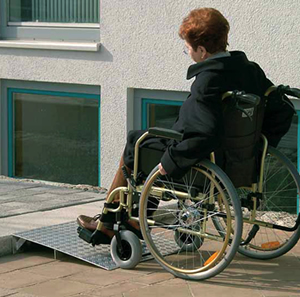

Wheelchair entrance ramp

The SBK entrance ramp is a sloping surface designed to butt up to steps. It is made from lightweight aluminium which will not rust and has a slot handle to make it easy to remove when not in use. The ramp has an non-slip surface and is maintenance free. The entrance ramp can be made to suit the height of any step. Please measure the height before ordering.



Click on small images to enlarge
Wheelchair ramp Wheelchair ramp

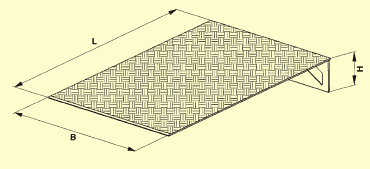

Section details
  Wheelchair entrance ramp






Standard ramp sizes
Length L
(mm)
Width B
(mm)
Height H
(mm)
Capacity
(kgs)
Weight
(kgs)
500
1000
10-70
300
9
650
1000
70-120
300
11
Note: Non-standard sizes are generally no problem. Other dimensions available on request.
