Aluminium Plant ramps - Type AVS 170

Products > Aluminium Loading ramps > Plant ramps > Type AVS 170

Made for loading mid range to heavy equipment, the AVS 170 has a larger and wider track than its smaller cousins. Although capacities are not much greater than the AVS 150, the extra width is useful for wider track/tyred vehicles.

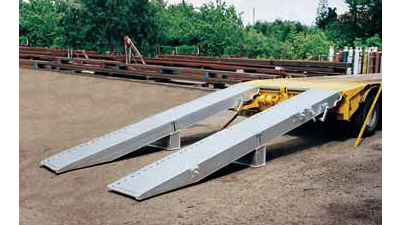

Click on the small image to see the folding version with support stools.

Available options:

(see standard ramp sizes below).

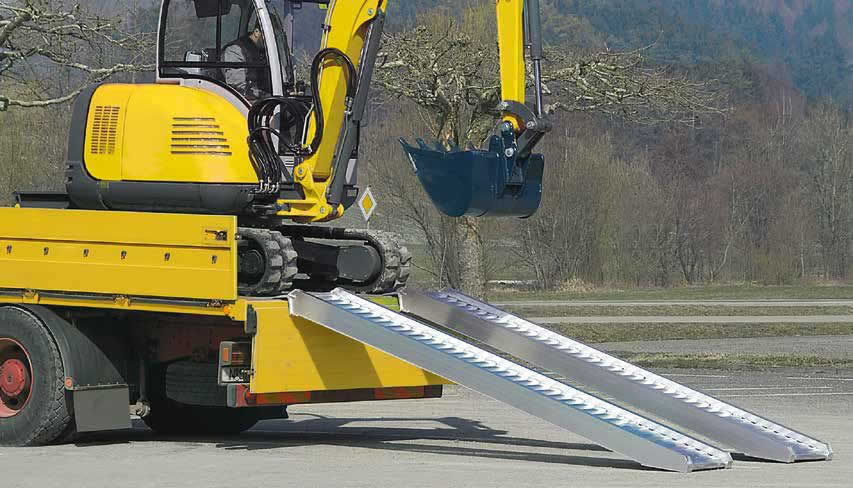

Aluminium Plant ramp
Click on small images to enlarge
Aluminium Plant ramps Aluminium Plant ramps Aluminium Plant ramps Aluminium Plant ramps
Section & Plan details
Also see

Plant ramp
Type AVS 150
Aluminium Plant ramp

Plant ramp
Type AVS 200
Aluminium Plant ramp

Folding plant ramp
Folding ramp
Plant ramp track surface
Track surface
Plant ramp track surface
Open aspect ramps - Type AVS - SP
Section details
Plant ramp
Plant ramp
Plant ramp
Without curbs
Curbs on both sides
Curbs on one side
Connection options
Plant ramp
Plant ramp
Plant ramp
Plant ramp

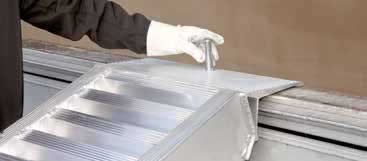

Lip with steel pin
Hook option with welded nib
Hinged fitting
VFR hook profile
Standard ramp sizes
Length (mm)
Internal width A (mm)
External width B (mm)
Capacity (kgs/pair) axle distance 2m
no curbs
Capacity (kgs/pair) axle distance 2m
with curbs
Bed Height
30% gradient (mm)
Weight (kgs/ea)
no curbs
Weight (kgs/ea) with curbs
2885
400
520
7710
7870
590-770
46
44
3285
400
520
6770
6820
680-890
52
50
3885
400
520
5730
5230
810-1060
60
58
4285
400
520
5190
4520
900-1170
66
63
4685
400
520
4750
3970
900-1290
72
68
5285
400
520
4210
3360
1130-1460
80
76
5485
400
520
4060
3200
1170-1520
83
79
Note: Non-standard sizes are generally no problem. Other dimensions available on request.
