Plant ramps for steel tracked vehicles (up to 8500 kgs/pair)
|
These ramps are designed to be used with all equipment including steel tracked vehicles. The running surface has been engineered with steel tracked equipment in mind, and is of a much harder wearing and heavier construction than the standard design. As an option these ramps can be supplied hinged, foldable, and with or without springing to balance the weight of the ramps and with or without safety curbs. (see standard ramp sizes below)
|
Click on small images to enlarge |
|
 Special preparation giving grip without scabbling |

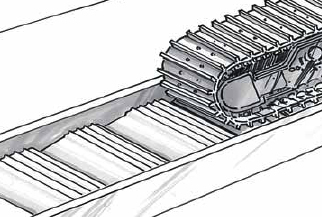

 Track surface |
Connection options |
|||
 |
 |
 |
 |
Lip with steel pin and underside hook bar |
Hook option with welded nib |
Hinged fitting |
VFR hook profile |
Section details |
||
 |
 |
 |
without curbs |
curbs on both sides |
curbs on one side |
Standard AVS 150 ramp sizes for steel tracked vehicles (up to 7300kgs/pair) |
|||||
Length (mm) |
Internal width A (mm) |
External width B (mm) |
Capacity (kgs/pair) axle distance 2m |
Bed Height 30% gradient (mm) |
Weight (kgs/ea) |
2640 |
400 |
500 (+20) |
7300 |
790 |
44 |
3040 |
400 |
500 (+20) |
6300 |
910 |
49 |
3640 |
400 |
500 (+20) |
5200 |
1090 |
57 |
4040 |
400 |
500 (+20) |
4400 |
1210 |
64 |
4440 |
400 |
500 (+20) |
3800 |
1330 |
70 |
5040 |
400 |
500 (+20) |
3250 |
1510 |
79 |
| Standard AVS 170 ramp sizes for steel tracked vehicles (up to 8000kgs/pair) | ||||||
Length (mm) |
Internal width A (mm) |
External width B (mm)
no curbs |
External width B (mm)
with curbs |
Capacity (kgs/pair) axle distance 2m |
Bed Height 30% gradient (mm) |
Weight (kgs/ea) |
2840 |
400 |
520 (+20) |
500 (+20) |
8000 |
850 |
51 |
3240 |
400 |
520 (+20) |
500 (+20) |
6900 |
970 |
58 |
3840 |
400 |
520 (+20) |
500 (+20) |
5300 |
1150 |
68 |
4240 |
400 |
520 (+20) |
500 (+20) |
4600 |
1270 |
73 |
4640 |
400 |
520 (+20) |
500 (+20) |
4000 |
1390 |
81 |
5240 |
400 |
520 (+20) |
500 (+20) |
3400 |
1570 |
90 |
5440 |
400 |
520 (+20) |
500 (+20) |
3200 |
1645 |
94 |
| Standard AVS 200 ramp sizes for steel tracked vehicles (up to 8500kgs/pair) | |||||
Length (mm) |
Internal width A (mm) |
External width B (mm)
|
Capacity (kgs/pair) axle distance 2m |
Bed Height 30% gradient (mm) |
Weight (kgs/ea) |
2840 |
450 |
580 (+20) |
8500 |
850 |
65 |
3440 |
450 |
580 (+20) |
8500 |
1030 |
78 |
4240 |
450 |
580 (+20) |
8200 |
1270 |
95 |
4440 |
450 |
580 (+20) |
7700 |
1330 |
100 |
5040 |
450 |
580 (+20) |
6400 |
1510 |
110 |
5240 |
450 |
580 (+20) |
6100 |
1570 |
115 |
