Sara aluminium ramps

Aluminium Plant ramps - Type AVS 200

Products > Aluminium Loading ramps > Plant ramps > Type AVS 200

AVS 200 ramps are ideal for loading large excavators and tractors. They also make useful yard ramps for unloading containers.

As with all AVS ramps, the high quality alloy used ensures that these ramps will last for years even with constant use.

Available options:

(see standard ramp sizes below).
Aluminium Plant ramp
Click on small images to enlarge

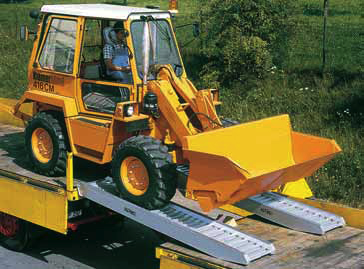

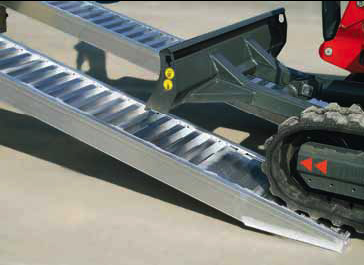

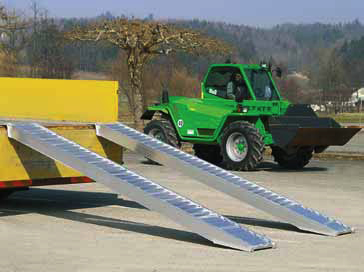

Aluminium Plant ramps Aluminium Plant ramps Aluminium Plant ramps
Section & Plan details
Also see

Plant ramp
Type AVS 150
Aluminium Plant ramp

Plant ramp
Type AVS 170
Aluminium Plant ramp

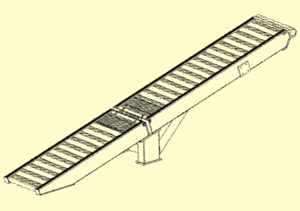

Folding plant ramp
Folding ramp
Plant ramp track surface
Track surface
Plant ramp track surface
Open aspect ramps - Type AVS - SP
Section details
Plant ramp
Plant ramp
Plant ramp
Without curbs
Curbs on both sides
Curbs on one side
Connection options
Plant ramp
Plant ramp
Plant ramp
Plant ramp
Lip with steel pin
Hook option with welded nib
Hinged fitting
VFR hook profile
Standard ramp sizes
Length
(mm)
Internal width A (mm)
External width B (mm)
Capacity (kgs/pair)
axle distance 2m
Bed Height 30% gradient (mm)
Weight
(kgs/ea)
2885
448
582
11330
590-770
59
3485
448
582
11330
720-940
70
4285
448
582
8370
900-1170
84
4485
448
582
7840
950-1230
88
5085
448
582
6570
1080-1400
99
5285
448
582
6240
1130-1460
103
Note: Non-standard sizes are generally no problem. Other dimensions available on request.
