Step ramp - Type SB-K/SB
Sack truck loadin 1

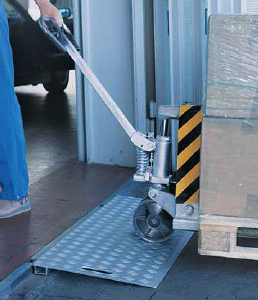

The SB-K and SK is a sloping surface designed to butt up to steps. It is made from 5-bar aluminium which will not rust and has slot handles to make it easy to remove when not in use. The ramp is lightweight and has an non-slip surface. The ramp can be made to suit the height of any step.

(Measure the height of the step before ordering.)



Click on small images to enlarge
Threshold bridge plates Sack truck bridge plates
Section and plan details
Threshold sectional drawing
Threshold plan drawing
Standard ramp sizes
Type
Length L
(mm)
Width B
(mm)
Height difference H
min (mm), max (mm
Capacity
(kgs)
Weight
(kgs)
SB-K
500
1000
10
70
300
9
SB-K
650
1000
70
120
300
11
SB
500
1250
30
70
3000
19
SB
800
1250
70
110
3000
32
