Aluminium Plant ramps - Type AVS 150

Products > Aluminium Loading ramps > Plant ramps > Type AVS 150

Made for loading mid range to heavy equipment, the AVS 150 has a larger and wider track than its smaller cousins. Although still very light weight, with the longer ramps, we are able to offer spring assistance when used with the hinged connection option.

Available options:

(see standard ramp sizes below).

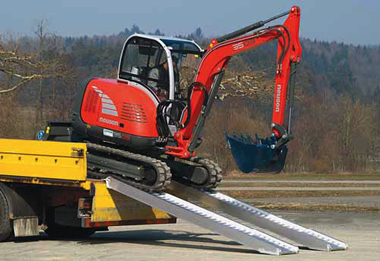

Aluminium Plant ramp
Click on small images to enlarge

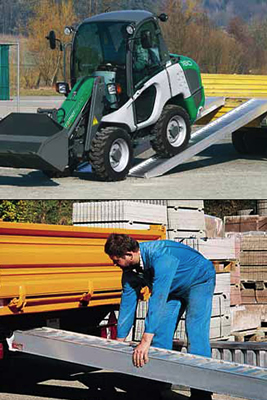

Aluminium Plant ramps Aluminium Plant ramps Aluminium Plant ramps
Section & Plan details
Also see

Plant ramp
Type AVS 130
Aluminium Plant ramp

Plant ramp
Type AVS 200
Aluminium Plant ramp

Folding plant ramp
Folding ramp
Plant ramp track surface
Track surface
Plant ramp track surface
Open aspect ramps - Type AVS - SP
Section details
Plant ramp
Plant ramp
Plant ramp
Without curbs
Curbs on both sides
Curbs on one side
Connection options
Plant ramp
Plant ramp
Plant ramp
Plant ramp
Lip with steel pin
Hook option with welded nib
Hinged fitting
VFR hook profile
Standard ramp sizes
Length (mm)
Internal width A (mm)
External width B (mm)
Capacity (kgs/pair) axle distance 2m no curbs
Capacity (kgs/pair) axle distance 2m with curbs
Bed Height
30% gradient (mm)
Weight
(kgs/ea)
2685
368
460
7710
7230
540-710
39
3085
368
460
6710
6290
630-830
44
3685
368
460
5300
5300
770-1000
51
4085
368
460
4530
4530
860-1120
56
4485
368
460
3950
3950
950-1230
61
5085
368
460
3310
3310
1080-1400
69
Note: Non-standard sizes are generally no problem. Other dimensions available on request.
