Aluminium Platform bridge plate - Type BB

Products > Bridge Plates & Drawbridges > Platform bridge plate
Platform bridge plate
Click on small images to enlarge
Platform bridge plates Platform bridge plates Platform bridge plates Platform bridge plates Platform bridge plates



The aluminium platform bridge plate is designed to eliminate minor height differences on a railway between the platform and the train. It is not hinged, but rotates on a steel guide rail. The guide rail is available in black or galvanised steel. It should be welded to the edge of a dock with a pre-installed channel section with a face height of a minimum of 120mm.
The aluminium BB bridge plate is simple to use. When not in use, the plate can hang from the guide rail in the downward position and is easily lifted using the handle or handles supplied. The bridge plate is then placed into position on the wagon floor. When in the downward parked position the bridge is unaffected by the passage of trains.
Where diagonal crossing is required, connecting plates are available. (click on fifth small image)

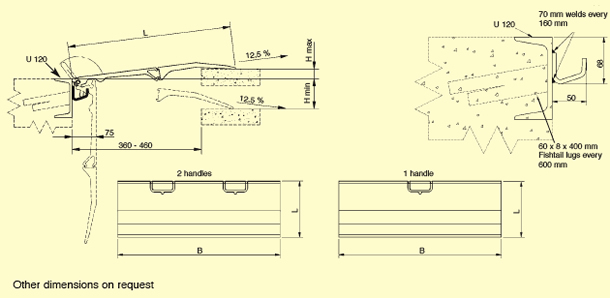

Section and plan details

Platform bridge plate

Connecting catches for 2 bridge plates

Technical Platform bridge plate



Standard ramp sizes
Length L
(mm)
Width B
(mm)
Height difference
min (mm), max (mm
Capacity
(kgs)
Weight
(kgs)
505
1450
-100
+30
4000
29
505
1750
-100
+30
4000
34
505
1950
-100
+30
4000
39
*505
1450
-100
+30
4000
31
*505
1750
-100
+30
4000
36
*505
1950
-100
+30
4000
41

Weight
(kg/metre)
Unpainted guide rail to be welded, 3000mm long
8
Galvanised guide rail to be welded, 3000mm long
8
Links for 2 bridge plates

* Models supplied with 2 lifting handles
