Wheelchair van ramp - Type RLK

Wheelchair van ramp

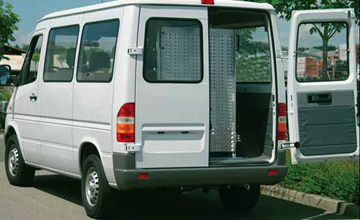

The aluminium van ramp is designed to allow for easy one-man operation. The folding and unfolding of the ramp is made effortless by the use of gas struts to balance the weight of the ramp. It is a light weight ramp which allows most of the payload of the vehicle to be retained.

The ramp surface is fabricated from extruded aluminium profiles which are perforated and embossed to give a perfect non-slip surface and allow rain and snow to disperse easily. The ramp is held in position by two latches, and mounting blocks are used to ensure the assembly is rigid and prevent any vibration during travelling.

See below for:
  • the RRD a swivel version of the RLK
  • the RLK-Z for vehicles with a low roof
Click on small images to enlarge
Wheelchair van ramp Wheelchair van ramp Wheelchair van ramp Wheelchair van ramp Wheelchair van ramp

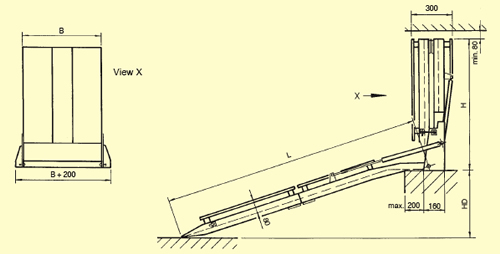

Section details
  Wheelchair van ramp






Standard RLK ramp sizes
Length L
(mm)
Width B
(mm)
Height H
(mm)
Height difference (mm)
min. (15%), max.(30%)
Capacity
(kgs)
Weight
(kgs)
1600
800
875
155
375
350
31
1600
1000
875
155
375
350
37
1800
800
980
185
435
350
33
1800
1000
980
185
435
350
40
2000
800
1045
205
475
350
35
2000
1000
1045
205
475
350
42
2200
800
1150
235
535
350
37
2200
1000
1150
235
535
350
44
2400
800
1255
265
595
350
39
2400
1000
1255
265
595
350
47
2600
800
1360
300
655
350
42
2600
1000
1360
300
655
350
50
2800
800
1465
330
715
320
44
2800
1000
1465
330
715
320
52
Note: Non-standard sizes are generally no problem. Other dimensions available on request.
Rotatable van ramps - Type RRD
Wheelchair van ramp This is basically the same ramp as the RLK, but with the facility to swivel the ramp back against the side panels of your van. An optional locking latch is available to keep the ramp in the swivelled position.
Wheelchair van ramp Wheelchair van ramp Wheelchair van ramp
Section details
Wheelchair van ramp
Standard RRD ramp sizes
Length L
(mm)
Width B
(mm)
Height H
(mm)
Height difference (mm)
min. (15%), max.(30%)
Capacity
(kgs)
Weight
(kgs)
1800
800
1040
185
460
450
54
1800
1000
1040
185
460
450
63
2000
800
1115
205
500
450
57
2000
1000
1115
205
500
450
66
2200
800
1220
235
570
450
59
2200
1000
1220
235
570
450
69
2400
800
1325
265
640
450
64
2400
1000
1325
265
640
450
73
2600
800
1430
300
700
450
66
2600
1000
1430
300
700
450
76
2800
800
1535
330
760
430
79
Wheelchair van ramps - Type RLK-Z
Wheelchair van ramp Derived from the RRK ramp, the RLK-Z is a bi-fold ramp designed for use in vehicles with a low roof height. It folds twice to create 3 small sections. They are easy to use and install.
Click on small images to enlarge
Wheelchair van ramp Wheelchair van ramp Wheelchair van ramp Wheelchair van ramp
Section details
  Wheelchair van ramp






Standard RLK-Z ramp sizes
Length L
(mm)
Width B
(mm)
Height H
(mm)
Height difference (mm)
min. (15%), max.(30%)
Capacity
(kgs)
Weight
(kgs)
2200
825
805
235
535
350
41
2400
825
875
265
595
350
43
2700
825
980
315
695
350
47
2900
825
1045
345
755
350
49
