Aluminium Mobile dock leveller - Type MBD
Products > Bridge Plates & Drawbridges > Mobile dock leveller

With this 3-piece movable dock leveller, it is possible to overcome large height differences between dock and lorry. It comes with built-in forklift openings which make it possible to position the bridge whereever it is needed.

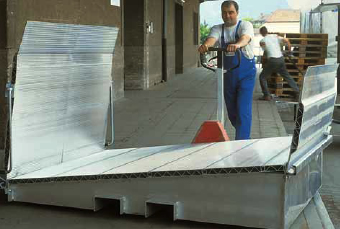

Dock bridge plate
Click on small images to enlarge
Dock bridge plates Dock bridge plates Dock bridge plates
Section and plan details
Also see
Technical dock leveller detail
Dock bridge plateDock bridge plate

Container bridge plate
Type MC
Container ramp

Heavy duty bridge plate
Type HF Heavy duty bridge plate
Standard ramp sizes
Length L
(mm)
Width B
(mm)
Height difference H
min (mm), max (mm
Capacity
(kgs)
Weight
(kgs)
4080
1500
+250
+500
4000
293
4080
1750
+250
+500
4000
332
4080
2000
+250
+500
4000
372
