Aluminium Trough ramps - Type ABS

Products > Aluminium Loading ramps > Trough ramps

This alumimiun ramp offers an excellent balance between a very low weight and a high load capacity. Robust and easy to handle, these ramps are ideal for loading/unloading items such as motorbikes, high pressure cleaners, generator sets, and wheelchairs.
Their profile allows them to be stacked one inside the other for ease of storage, and the 45mm high safety curbs on each side prevent any lateral slippage.
The ramps are fabricated from an extruded profile which is cut to length and angled as required. Calculations for capacities are based on a 40% to 60% axle weight distribution. For single axle vehicles, ramp capacities should be reduced by 40%.
A folding version is available.

Aluminium Trough ramps
Click on smaller images to enlarge
Aluminium Trough ramp Aluminium Trough ramp Aluminium folding Trough ramp Trough ramp Aluminium Trough ramp Aluminium folding Trough ramp Aluminium folding Trough ramp
Section & Plan details

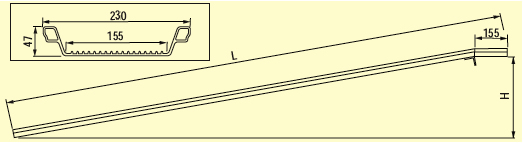

ABS Profile

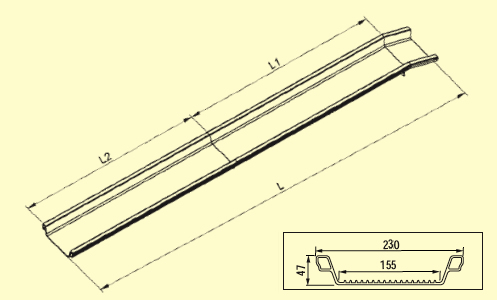

ABS FoldingFolding version
Safety logo
Standard ramp sizes
Type
Length L
(mm)
Internal width (mm)
External width (mm)
Capacity (kgs/pair),
axle distance 1m
Bed Height H 30% gradient (mm)
Weight (kgs/each)
ABS 04
1000
155
230
700
130-240
4
ABS 05
1500
155
230
600
210-380
6
ABS 01
2000
155
230
500
290-530
7
ABS 02
2500
155
230
400
370-670
9
ABS 03
3000
155
230
350
450-810
11

Type

Length
L (L1, L2) mm

Internal width (mm)
External width (mm)
Capacity (kgs/pair),
axle distance 1m
Bed Height H 30% gradient (mm)
Weight (kgs/each)
ABS-Folding
1485 (835, 650)
155
230
500
210-380
6
ABS-Folding
1985 (1085, 900)
155
230
400
290-530
8
ABS-Folding
2485 (1335, 1150)
155
230
350
370-670
9
ABS-Folding
2985 (1580, 1400)
155
230
300
450-810
11
