Heavy duty bridge plate - Type HF

Products > Bridge Plates & Drawbridges > Heavy duty bridge plate

The model HF heavy duty bridge plate is fabricated from a 40mm thick aluminium honeycombe plate with non-slip surface. The bottom section includes a hinged lip to assist the passage of small wheeled trolleys and is fitted with a rubber profile to prevent any risk of slippage.

Ideal for loading and unloading between the dock and lorry or container.

Those that support the heavier weights have reinforcing sections welded underneath.

Options include:

- transport wheels
- transport trolley
- retractable fork grips
- safety arms (in accordance with EN1398)

Bridge plate
Click on small images to enlarge
Heavy duty bridge plates Heavy duty bridge plates Heavy duty bridge plates Heavy duty bridge plates Heavy duty bridge plates Heavy duty bridge plates

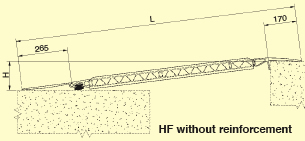

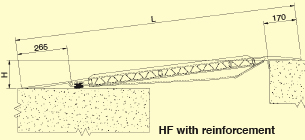

Section and plan details
Also see
Heavy dury bridge plate

Heavy duty bridge plate

Heavy duty bridge plate

Small bridge plates
Type HFB
Threshold ramp

Small bridge plate
Type HFB55
Bridge plate

Small bridge plate
Type HFB60
Bridge plate

Container bridge plate
Type MC
Container bridge plate

Standard ramp sizes
Length L
(mm)
Width B
(mm)
Height difference H
min (mm), max (mm
Capacity
(kgs)
Weight
(kgs)
1235
1250
0
+110
4000
52
1235
1500
0
+110
4000
61
1485
1250
0
+140
3500
61
1485
1500
0
+140
3500
72
1735
1250
0
+170
3000
70
1735
1500
0
+170
3000
83
1985
1250
0
+200
2000
82
1985
1500
0
+200
2000
86
2235
1250
0
+235
1800
91
2235
1500
0
+235
1800
107
2485
1250
0
+265
1600
91
2485
1500
0
+265
1600
107
1235
1250
0
+110
4000
52
1235
1500
0
+110
4000
61
1485
1250
+75
+140
4000
65
1485
1500
+75
+140
4000
76
1735
1250
+90
+170
4000
75
1735
1500
+90
+170
4000
88
1985
1250
+110
+200
4000
91
1985
1500
+110
+200
4000
105
2235
1250
+125
+235
4000
101
2235
1500
+125
+235
4000
117
2485
1250
+145
+265
4000
116
2485
1500
+145
+265
4000
134
