Wheelchair Non-slip Trough ramps - Type RAS

Products > Wheelchair ramps > Non-slip Trough ramp



Wheelchair non-slip trough ramps
Click on small images to enlarge
Wheelchair non-slip trough ramps Wheelchair non-slip trough ramps Wheelchair non-slip folding trough ramps Wheelchair non-slip folding trough ramps Wheelchair non-slip folding trough ramps

The trough ramp offers an excellent balance between a very low weight and a high load capacity. Robust and easy to handle, these ramps are fabricated from an extruded profile which is cut to length and angled as required.

With an internal width of 150mm and an overall width of 235mm, these ramps are ideal for wheelchairs even those with offset axles. Their profile allows them to be stacked one inside the other for ease of storage and the 45mm high safety curbs on each side prevent any lateral slippage.

They have a non-slip surface which makes them ideal for moving wheelchairs and their occupants into and out of cars or vans.

The RAS-F is a foldable ramp which means it can be stored and transported with the vehicle.

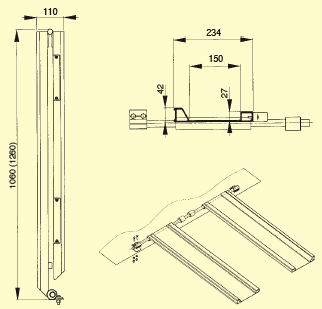

Alternatively the RAS-W can be permanently installed inside the vehicle. The ramps pivoting and sliding mechanism uses bearings for ease of use. During transportation, the ramps are held in a vertical position by the safety straps supplied. If required, the ramp surface can easily be renewed with an non-slip adhesive.

Each pair of RAS-W ramps is supplied with a mounting kit which consists of :

  • 1 steel axle (length 1800mm)
  • 1 installation kit to fix the steel axle to the floor of the vehicle
  • 2 safety straps to hold the ramps in the vertical position

(See standard ramp sizes below)

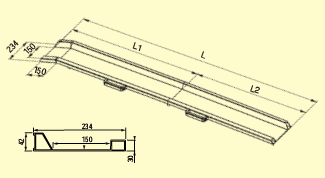

Section details
Also see

Trough ramps
Type ABS
Wheelchair trough ramp

Wheelchair non-slip trough ramps

Wheelchair non-slip folding trough ramps

Wheelchair non-slip folding trough ramps

Wheelchair ramps

Standard RAS ramp sizes
Length L
(mm)
Internal Width
(mm)
External Width
(mm)
Height difference 20% gradient (mm)
Capacity
(kgs/pair)
Weight
(kgs/each)
2000
150
234
365
380
8
2500
150
234
465
380
10
3000
150
234
565
380
12
Folding non-slip trough ramps - Type RAS-F
Length L
(mm)
Length L1
(mm)
Length L2
(mm)
Internal Width
(mm)
External Width
(mm)
Height difference 20% gradient (mm)
Capacity
(kgs/pair)
Weight
(kgs/each)
2000
1100
900
150
235
365
300
9
2500
1350
1150
150
235
465
300
11
3000
1600
1400
150
235
565
280
13
Fitted non-slip trough ramps - Type RAS-W
Length L
(mm)
Length L1
(mm)
Length L2
(mm)
Internal Width
(mm)
External Width
(mm)
Capacity
(kgs/pair)
Weight
(kgs/each)
2000
1040
960
150
234
300
9
2400
1240
1160
150
234
300
11
Note: Non-standard sizes are generally no problem. Other dimensions available on request.
