Aluminium Plant and low loader ramps - Type VFR 120

Products > Aluminium Loading ramps > Plant & Low loader ramps > Type VFR 120

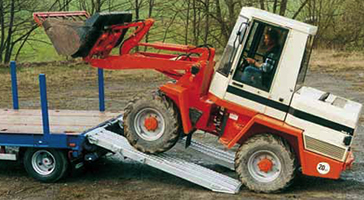

If you are loading plant machinery onto low loaders or flatbeds, then these versatile ramps are ideal. They are suited to loading machines equipped with pneumatic tyres, solid wheels, and rubber or steel tracks. They are made from a special aluminium construction which is strong, durable and weather-resistant.

These ramps can be supplied with a lip, a hinged end or with a hook which fits into a guide rail. Guide rail is available in lengths of 2600mm in black or galvanised steel.

(see standard ramp sizes below).

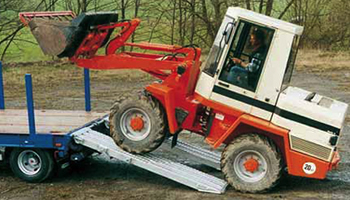

Aluminium Plant and low loader ramps
Click on small images to enlarge
Aluminium Plant and low loader ramps Aluminium low loader ramps Aluminium low loader ramps Aluminium low loader ramps Aluminium low loader ramps
Available options:
Also see

Plant ramp
Type VFR 105
Aluminium Low loader ramp

Plant ramp
Type VFR 134
Aluminium Low loader ramp

Section & Plan details
Folding plant ramp
Length and bed height
Plant ramp track surface
Connection options
Plant ramp
Plant ramp
Plant ramp
Lip with steel pin
Hinged fitting
Bottom hook
Standard ramp sizes
Length L
(mm)
Width
(mm)
Capacity (kgs/pair) axle distance 2m
hook & hinge support
Capacity (kgs/pair) axle distance 2m
lip support
Bed Height
30% gradient (mm)
Weight (kgs/ea) hook & hinge support
Weight (kgs/ea) lip support
3000
400
10230
9780
710-890
48
47
2000
450
23020
13580
480-620
46
44
2400
450
19190
12550
570-730
54
52
3000
450
15350
11010
710-900
65
63
3575
450
12820
11280
840-1070
77
73
4000
450
10790
9800
930-1190
85
83
Note: Non-standard sizes are generally no problem. Other dimensions available on request.
