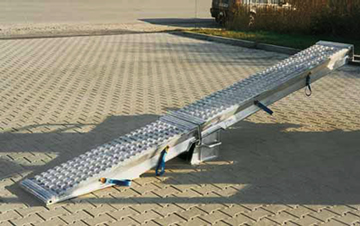

Plant and low loader ramps - Type VFR 134 (up to 32,000 kgs/pair) |
These ramps can be used when loading machines with pneumatic tyres, solid wheels, and rubber or steel tracks. The heavy duty profile and high grade aluminium used in our VFR 134 ramps ensures durability even when loading steel track machinery.
These ramps can be supplied with a hook-on option or hinged to take a 60mm bright steel bar. For heavier hinged ramps we recommend our spring counterbalance system. (see standard ramp sizes below)
|
Click on small images to enlarge
 |
Measurements |
|
Connection options |
|
|
Hook support |
Hinge support |
|
|
Section details - 2 standard widths available |
 |
 |
450 (+20) |
600 (+20) |
|
|
Standard VFR 134 ramp sizes |
Length L
(mm) |
Width
(mm) |
Capacity (kgs/pair) axle distance 2m |
Bed Height H
30% gradient (mm) |
Weight
(kgs/ea) |
|
|
|
720 |
|
|
|
|
840 |
|
|
|
|
900 |
|
|
|
|
720 |
|
|
|
|
840 |
|
|
|
|
900 |
|
|
|
| Note: Non-standard sizes are generally no problem. We can make the ramp to any length you require. The width can be increased within reason. |
