Aluminium Plant and low loader ramps - Type VFR 185

Products > Aluminium Loading ramps > Plant & Low loader ramps > Type VFR 185

Our extra heavy duty profiles enable us to produce special ramps with capacities up to 80 tonnes per pair. These profiles have been designed specifically for us to offer design solutions for low loader manufacturers.

All VFR 185 ramps are bespoke.

Available options: (see standard ramp sizes below).
Aluminium Low loader ramp
Click on small images to enlarge

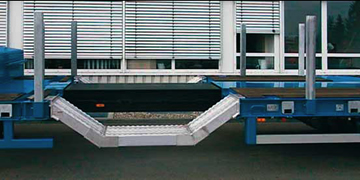

Aluminium Low loader ramp Plant ramps Aluminium Low loader ramp
Ramp details
Also see

Plant ramp
Type VFR 120
Aluminium Low loader ramp

Plant ramp
Type VFR 134
Aluminium Low loader ramp

Aluminium Low loader ramp
A ramp in 2 parts with pedestal
Aluminium Low loader ramp
Application example
Connection option
Ramp
Plant ramp
Plant ramp
Bottom hook
Cross section
Profile examples
Plant rampPlant rampPlant ramp
Standard ramp sizes
Length L
(mm)
Width
(mm)
Capacity (kgs/pair) axle distance 2m
Bed Height H
30% gradient (mm)
Weight
(kgs/ea)
2000
420
43500
500-610
106
2400
420
39680
590-720
126
2000
560
58010
460-570
142
2400
560
52900
550-680
168
Note: Non-standard sizes are generally no problem. Other dimensions available on request.
