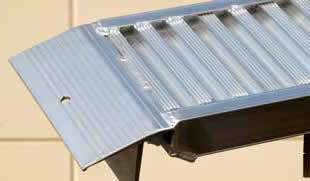

Plant ramps - Type AVS 130 (up to 5150 kgs/pair)
|

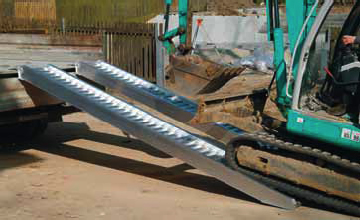

Made for loading rubber track and pneumatic tyred plant, the AVS 130 is an ideal ramp for use with most large plant trailers and 7.5 tonne trucks. This is our most popular ramp. The robust surface ensures minimal wear even with constant use. Curb and folding options are also available. (see standard ramp sizes below).  The new AVS-SP For an open aspect version of the AVS 130 plant ramp see the News page. |
|
Click on small images to enlarge |
|
 |
Folding version |
 |
Track surface |
Connection options |
||
 Steel pin drop bolts are supplied as standard |
||
 |
 |
 |
Lip with steel pin and movable safety device |
Hook option with welded nib |
Hinged fitting |
Section details |
||
 |
 |
 |
without curbs |
curbs on both sides |
curbs on one side |
Standard AVS 130 ramp sizes |
|||||
Length (mm) |
Internal width A (mm) |
External width B (mm) |
Capacity (kgs/pair) axle distance 1.5m |
Bed Height 30% gradient (mm) |
Weight (kgs/ea) |
2510 |
325 |
405 (+20) |
5150 |
750 |
26 |
3050 |
325 |
405 (+20) |
4390 |
915 |
31 |
3590 |
325 |
405 (+20) |
3470 |
1080 |
35 |
4130 |
325 |
405 (+20) |
2860 |
1240 |
40 |
4670 |
325 |
405 (+20) |
2430 |
1400 |
45 |
5210 |
325 |
405 (+20) |
2120 |
1560 |
50 |
