Pedestrian ramps - Type AOH |
| Products > Aluminium Loading ramps > Pedestrian ramps > Type AOH |

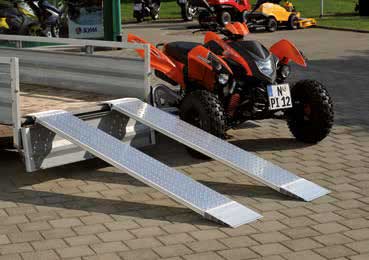

Designed for regular small load movements these pedestrain ramps offer a light-weight alternative with an excellent all weather surface. The embossed surface is suitable for walking on.
Click on small images to enlarge
 |

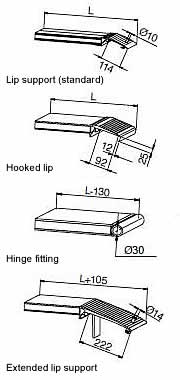

Section & Plan Details |
Also see Pedestrian ramp
Type AOG
Pedestrian ramp
Type AOS
 |
|
|
Standard ramp sizes |
Type |
Length
L (mm) |
Width
B (mm) |
Height
(mm) |
Height Difference
HD (mm) |
Capacity
(kgs/pair) |
Weight
(kgs/each) |
AOH 200 |
1470 |
200 |
40 |
180-410 |
410 |
4 |
1960 |
200 |
40 |
250-550 |
340 |
5 |
2450 |
200 |
40 |
320-700 |
260 |
6 |
AOH 400 |
1470 |
400 |
40 |
180-410 |
810 |
9 |
1960 |
400 |
40 |
250-550 |
680 |
11 |
2450 |
400 |
40 |
320-700 |
500 |
13 |
|
|
|
|
|
(kgs/each) |
|
AOH 600 |
1470 |
600 |
40 |
180-410 |
565 |
11 |
1960 |
600 |
40 |
250-550 |
475 |
14 |
2450 |
600 |
40 |
320-700 |
385 |
17 |
2940 |
600 |
40 |
390-840 |
300 |
21 |
AOH 800 |
1470 |
800 |
40 |
180-410 |
680 |
15 |
1960 |
800 |
40 |
250-550 |
570 |
19 |
2450 |
800 |
40 |
320-700 |
465 |
23 |
2940 |
800 |
40 |
390-840 |
365 |
27 |
|
| |
