Aluminium Pedestrian ramps - Type AOG

Products > Aluminium Loading ramps > Pedestrian ramps > Type AOG

With the AOG aluminium ramp, the user will find a strong ramp with a low construction weight and high grip suitable for walking on. The cross-sectional milled surface of the ramp gives excellent weight to capacity ratios.

The AOG is available in 2 standards widths 220mm and 440mm.

40mm curbs available as an optional extra.

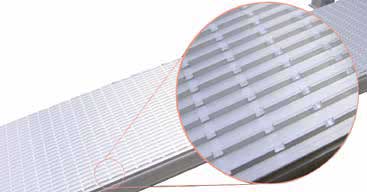

Aluminium Pedestrian ramp
Click on small images to enlarge
Aluminium Pedestrian ramp Aluminium Pedestrian ramp Aluminium Pedestrian ramp Aluminium Pedestrian ramp

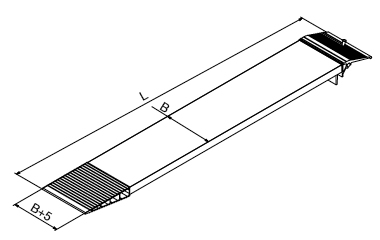

Section & Plan Details
Also see

Pedestrian ramp
Type AOH
Pedestrian ramp

Pedestrian ramp
Type AOS
Pedestrian ramp

Pedestrian ramp
Pedestrian ramp
A) Lip support    B) Hooked lip at top   C) Hinge fitting    D) Extended lip support
Standard ramp sizes
Type
Length
L (mm)
Width
B (mm)
Height
(mm)
Height Difference
HD (mm)
Capacity
(kgs/pair)
Weight
(kgs/ea)
AOG 220
1505
220
40
230-400
1000
7
1995
220
40
310-540
770
9
2485
220
40
390-690
560
11
2975
220
40
470-830
440
13
AOG 440
1505
440
40
230-400
2000
13
1995
440
40
310-540
1540
17
2485
440
40
390-690
1120
21
2975
440
40
470-830
870
25
Note: Non-standard sizes are generally no problem. Other dimensions available on request.
