Aluminium Plant ramps - Type AVS 80

Products > Aluminium Loading ramps > Plant ramps > Type AVS 80

These ramps are ideal for loading smaller rubber track and pneumatic tyred vehicles weighing up to 2630kgs (see standard ramp sizes below). The surface profile is extruded from a high quality aluminium alloy which guarantees longevity even with constant use. The AVS 80 plant ramps are supplied with a steel pin and drop bolts as standard.

Available options:

  • Curbs (one side or both)
  • Open aspect tracks (allow dirt and stones to fall through the gaps)
  • Folding
  • Steel tracks

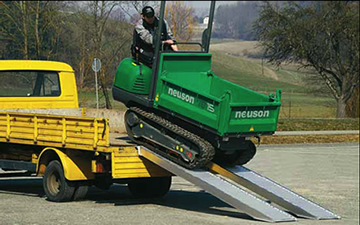

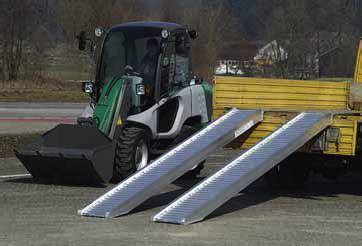

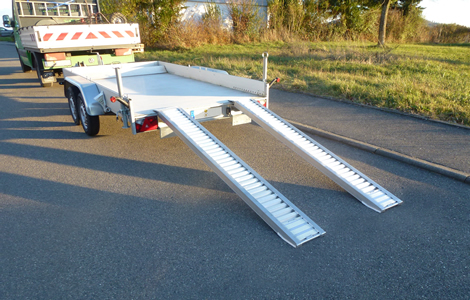

Aluminium Plant ramp
Click on small images to enlarge
Aluminium Plant ramps Aluminium Plant ramps Aluminium Plant ramps Aluminium Plant ramps Aluminium Plant ramps
Section & Plan details
Also see

Plant ramp
Type AVS 65
Aluminium Plant ramp

Plant ramp
Type AVS 93
Aluminium Plant ramp

Plant ramp
Type AVS 110
Aluminium Plant ramp

Plant ramp
Ramp
Plant ramp track surface
Track surface
Plant ramp track surface
Open aspect ramps - Type AVS - SP
Connection options
Plant ramp
Plant ramp
Plant ramp
Lip with steel pin and movable safety device
Hook option with welded nib
Hinged fitting
Section details
Plant ramp
Plant ramp
Plant ramp
Without curbs
Curbs on both sides
Curbs on one side
Standard ramp sizes
Length
(mm)
Internal width A (mm)
External width B (mm)
Capacity (kgs/pair) axle distance 1.5m
Bed Height
30% gradient (mm)
Weight (kgs/ea)
1620
245
305
2630
350-440
11
1980
245
305
2150
430-540
13
2340
245
305
1660
510-640
15
2520
245
305
1470
550-700
16
3060
245
305
1090
680-850
19
3240
245
305
1000
720-900
20
3420
245
305
920
760-950
21
3960
245
305
750
880-1110
24
Note: Non-standard sizes are generally no problem. Other dimensions available on request.
