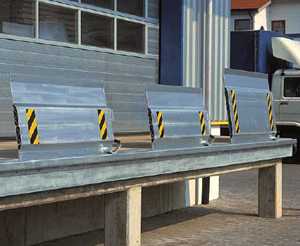

Aluminium drawbridge leveller - Type KBS

drawbridge leveller

The KBS drawbridge leveller is perfect for overcoming minor differences in levels between the dock and the lorry bed whilst loading or unloading.

Robust and maintenance free, these drawbridge levellers are suitable for a wide variety of uses and users. The KBS can slide from side to side and should be stored in a upright position.


There is an automatic safety latch to prevent the plate from falling when not in use which is easily release using the foot.

Click on small images to enlarge
drawbridge leveller drawbridge leveller drawbridge leveller drawbridge leveller
Section and plan details
Technical sack detail
Drawbridge leveller
Technical sack detail
Guide rail
Standard ramp sizes
Length L
(mm)
Width B
(mm)
Dimension D
(mm)
Height difference H
min (mm), max (mm
Capacity
(kgs)
Weight
(kgs)
410
1250
80
-70
+30
4000
19
535
1250
100
-90
+45
4000
24
785
1250
150
-120
+75
4000
31
910
1250
170
-135
+90
4000
36
410
1500
80
-70
+30
4000
23
535
1500
100
-90
+45
4000
28
785
1500
150
-120
+75
4000
38
910
1500
170
-135
+90
4000
44

Weight
(kg/metre)
Galvanised guide rail 3000mm long
8
Galvanised guide rail 2500mm long
8
Galvanised guide rail 2000mm long
8
