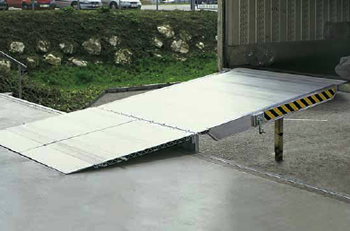

Aluminium tandem drawbridge leveller - Type FBT

drawbridge leveller

The FBT is an aluminium 2-piece drawbridge leveller. This split level platform is ideal for use on low docks or when using machinery with small wheels or low clearance.

It is ideal for unloading standing trailers or containers. The tandem drawbridge can be used for height differences of up to 500mm and makes a versatile addition to any loading bay.

Click on small images to enlarge
drawbridge leveller drawbridge leveller drawbridge leveller

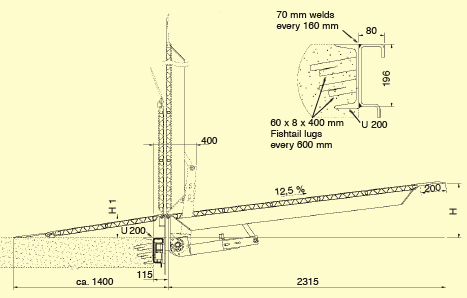

Section details
Technical sack detail
Static
Technical sack detail
Sliding
Standard ramp sizes
Length L
(mm)
Width B
(mm)
Pivot Height H1
(mm)
Height difference H
(mm)
Capacity
(kgs)
Weight
static (kgs)
Weight
sliding (kgs)
3700
1500
180
+460
4000
305
336
3700
1750
180
+460
4000
345
382
3700
2000
180
+460
4000
425
465
3700
1500
150
+430
4000
305
336
3700
1750
150
+430
4000
345
382
3700
2000
150
+430
4000
425
465

Weight
(kg/metre)
Black guide rail 2000/3000mm long
25
Galvanised guide rail 2000/3000mm long
25
Galvanised fixing plate
8
