Plant and low loader ramps - Type VFR Wheel ramps (up to 50000 kgs/pair)

Low loader ramp

These ramps are used mainly on trailers and low loaders. The profile used in the construction of the ramps maximises its dimensions and load bearing capacity. The ramps can be used when loading machines with pneumatic tyres, solid wheels, and rubber or steel tracked vehicles. The ramps can be supplied with a hinged end, or as a foldable version. Spring counterbalancing is also an option.

(see standard ramp sizes below)

Spring assistance

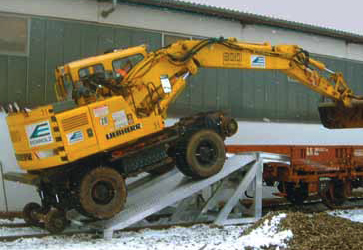

Wheel ramp

Wheel ramp

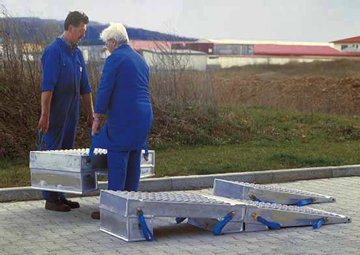

For ease of handling, several units can be positioned adjacent to each other

Wheel ramp
Wheel ramp
Single unit
Split unit
Section detail
Wheel ramp profile
Standard VFR wheel ramp sizes
Length L
(mm)
Width B
(mm)
Capacity
(kgs/pair)
Bed Height
30% gradient (mm)
Weight
(kgs/ea)
1450
420
30000
350
70
1450
600
35000
350
92
1450
690
50000
350
110
Note: Non-standard sizes are generally no problem. We can make the ramp to any length you require. The width can be increased within reason.
