Aluminium Hinged tailboard ramp - Type RWB

Products > Aluminium Loading ramps > Tailboard ramps > Type RWB

Hinged tailboard ramps are used between the rear deck of commercial vehicles and the loading dock, or as an access ramp when the vehicle platform is at ground level.

When fitted to the rear of a commercial vehicle, they can serve as a tailboard and a load bearing access ramp. These tail board ramps are fabricated from an anti-slip five bar treadplate surface.

Fitting kits are available and the hinge shaft is included.

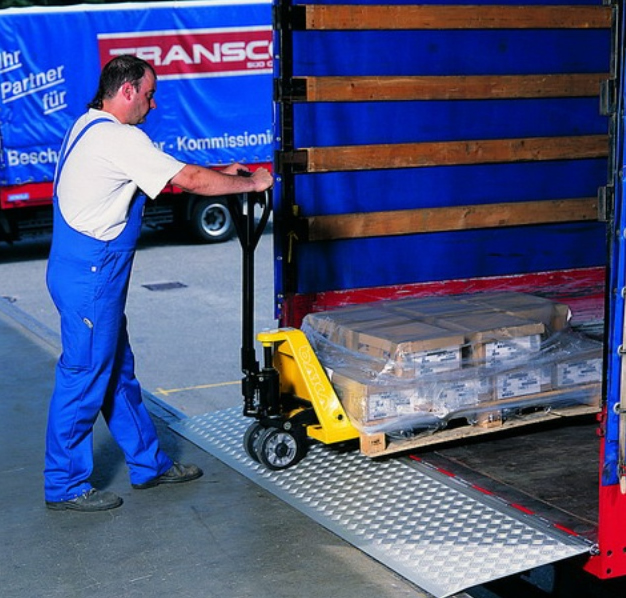

Tail board ramp
Section & Plan Details
Also see

Tailboard ramp
Type RPB-30
Tailboard ramp

Tailboard ramp
Type RPB-40
Tailboard ramp

Tailboard ramp
Hinged tailboard with five-bar treadplate surface
Tailboard lift
Use fitting kit models 1 or 2
Hinged tailboard
Use fitting kit model 3
Fitting kit - Model 1
Fitting kit - Model 2
Fitting kit - Model 3
RWB Model 1
RWB Figure 1
Bolted aluminium profile
RWB Model 2
RWB Figure 2
Welded steel tube
RWB Model 3
RWB Figure 3
Bolt or welded hinge
Standard ramp sizes
Length L (mm)
Width (mm)
Capacity (kgs)
Weight (kgs)
600
2300
2500
40
600
2500
2500
44
800
2300
1900
53
800
2500
1900
58
900
2300
1700
59
900
2500
1700
65
1000
2300
1500
66
1000
2500
1500
72
