Loading Ramps -

Plant Ramps - Type AVS 80

(See table below for sizes and capacities)

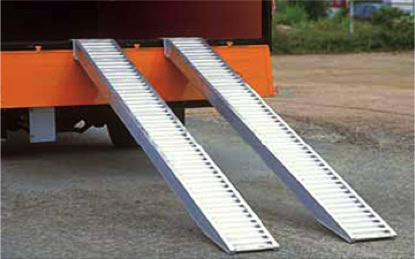

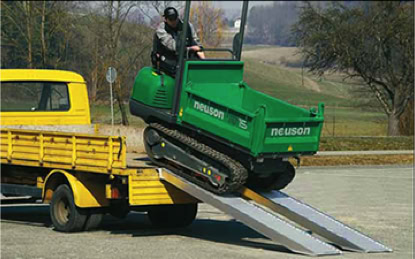

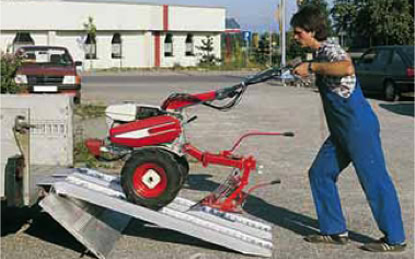

These ramps. are ideal for loading smaller rubber track and pneumatic tyred vehicles. Capacities range from 750kgs for a 3960mm long ramp to 2630kgs for a length of 1620mm (see table below). The surface profile is extruded from a high quality aluminium alloy which guarantees longevity even with constant use. The AVS 80 ramps are supplied with a steel pin and drop bolts as standard.  These ramp can be folded and are available with or without curbs or with curbs on one side only.

Connection and curb options

Pedestrian Ramps:

Van Ramps:

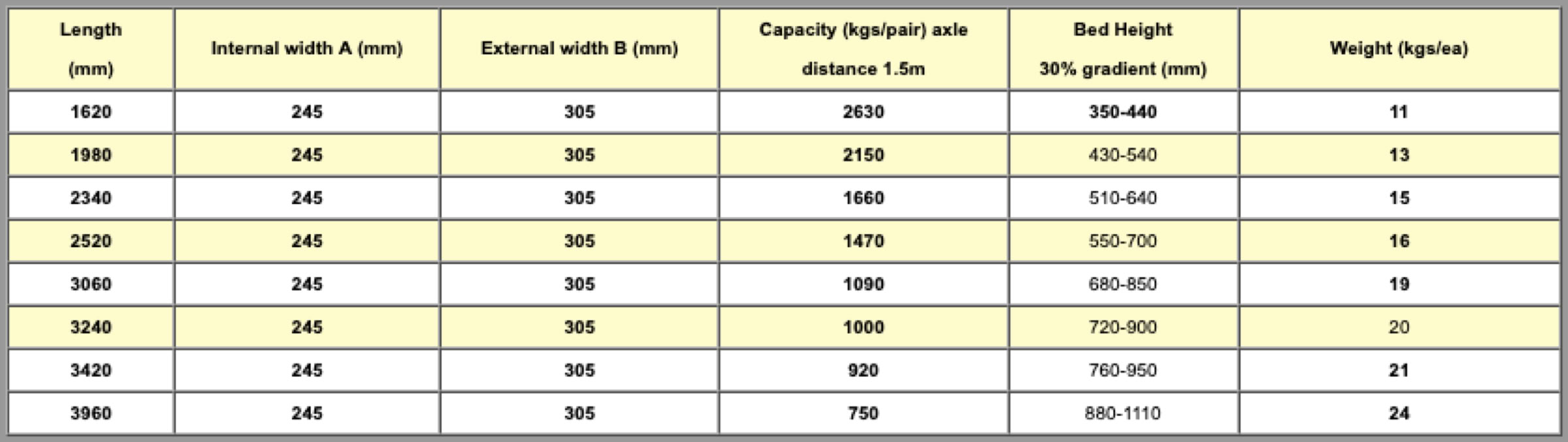

Standard Ramp Sizes (other sizes available on request)
