Trough Ramps - Type ABS

(See table below for sizes and capacities)

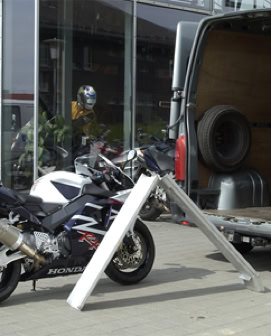

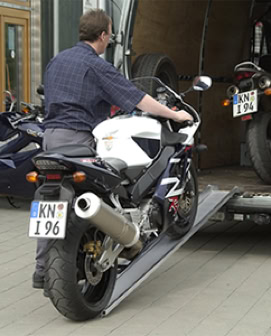

This aluminium ramp offers an excellent balance between a very low weight and a high load capacity. Robust and easy to handle, these ramps are ideal for loading/unloading items such as motorbikes, high pressure cleaners, generator sets, and wheelchairs.

Their profile allows them to be stacked one inside the other for ease of storage, and the 45m high safety curbs on each side prevent any lateral slippage.

The ramps are fabricated from an extruded profile which is cut to length and angled as required. Calculations for capacities are based on a 40% to 60% axle weight distribution.

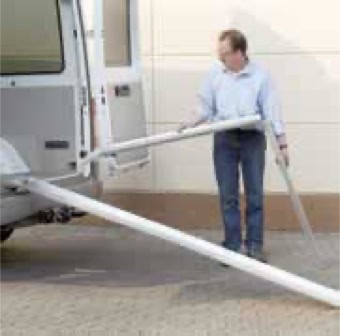

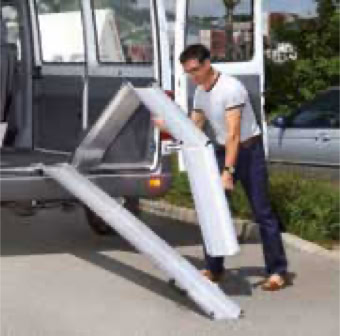

(Folding and twice folded versions are available)

Pedestrian Ramps:

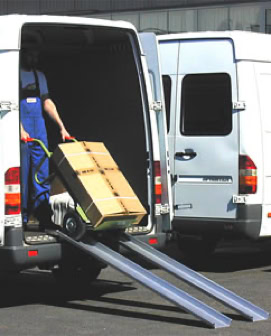

Van Ramps:

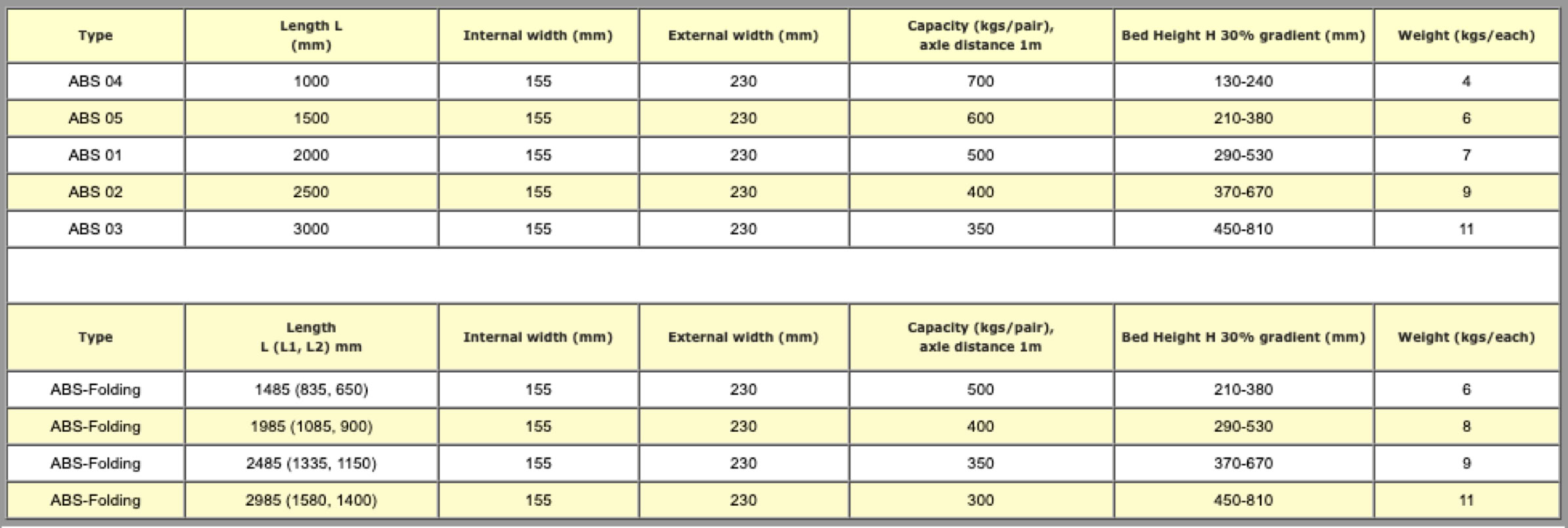

Standard Ramp Sizes (other sizes available on request)

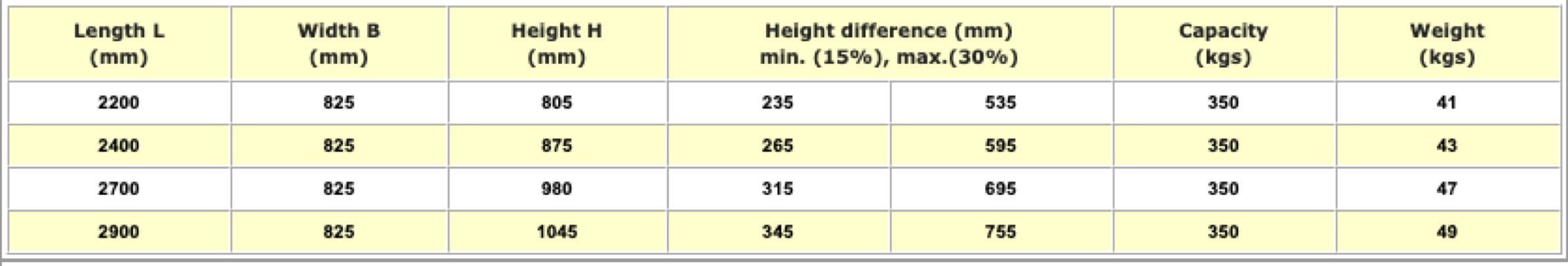

ABS-Z (Twice folding)
