Plant Ramps - Type AVS 65

(See table below for sizes and capacities)

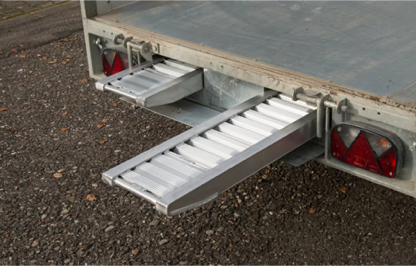

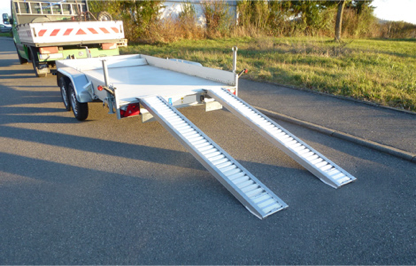

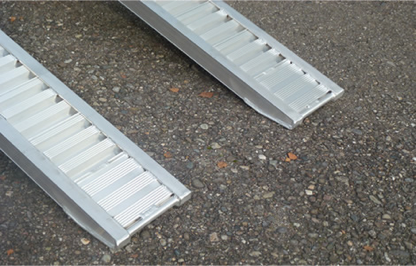

These are our smallest profile plant ramps. Ideal for storing under trailers or for loading smaller rubber track and pneumatic tyred vehicles. Capacities range from 1350kgs for a 3060mm long ramp to 3260kgs for a length of 1620mm (see table below). The surface profile is extruded from a high quality aluminium alloy which guarantees longevity even with constant use. As with all AVS ramps, these are available with or without curbs or with curbs on one side only.

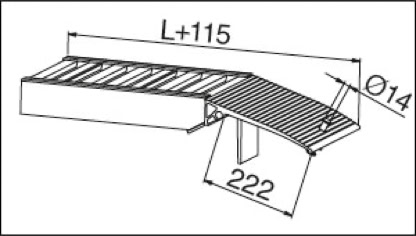

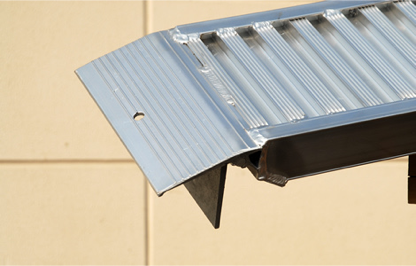

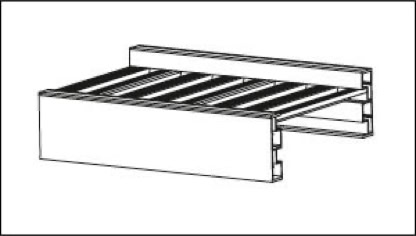

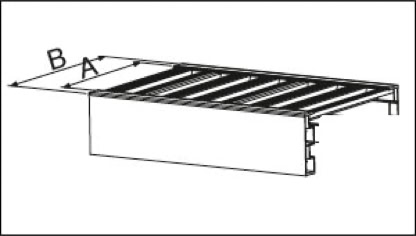

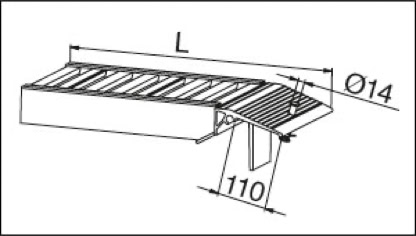

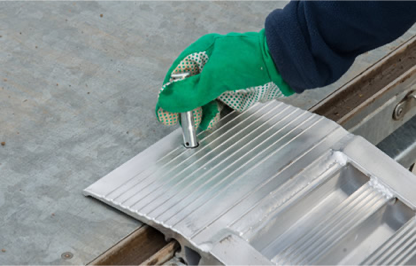

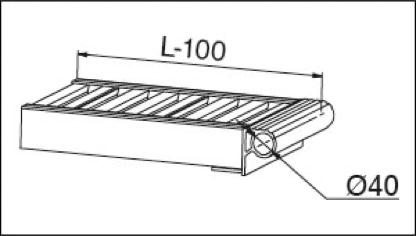

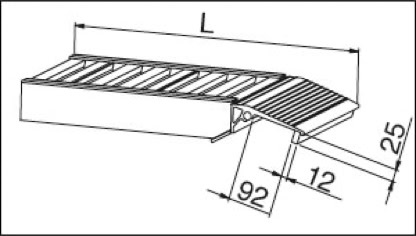

Connection and curb options

Pedestrian Ramps:

Van Ramps:

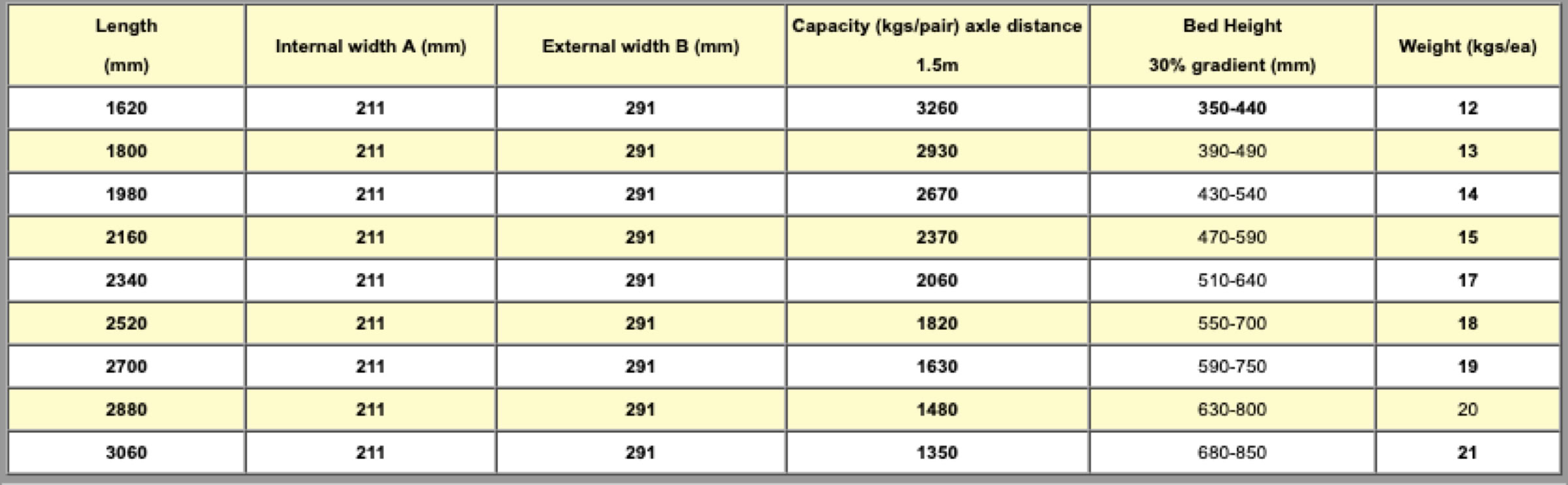

Standard Ramp Sizes (other sizes available on request)
