Loading Ramps -

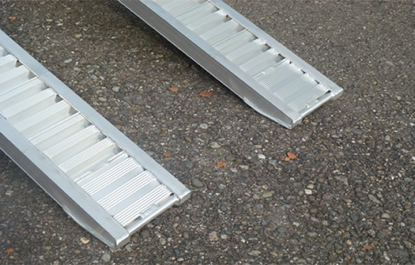

Plant Ramps - Type AVS 93
(See table below for sizes and capacities)

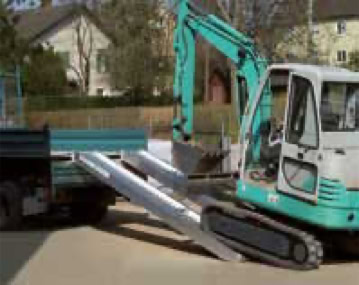

Our AVS 93 aluminium loading ramps have been specially developed to increase the possibility of stowing the ramps. Ideal for storing under trailers or for loading smaller rubber track and pneumatic tyred vehicles. Capacities range from 1850kgs for a 3950mm long ramp to 3970kgs for a length of 1970mm (see table below). The surface profile is extruded from a high quality aluminium alloy which guarantees longevity even with constant use. As with all AVS ramps, these are available with or without curbs or with curbs on one side only.
Connection and curb options

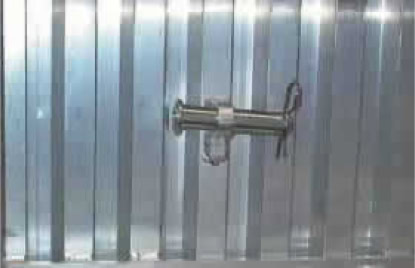

Lip with steel pin and movable safety device

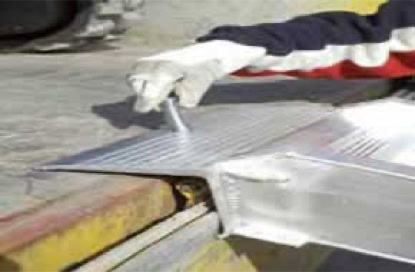

Hook with welded nib
Hinge fitting

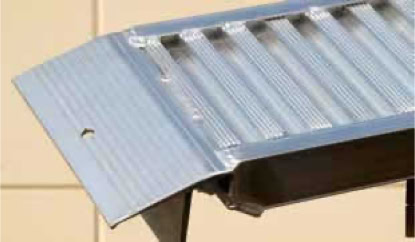

Long lip with pin and movable safety device
Ramp profile without curbs
Ramp profile with curbs on one side
Ramp profile with curbs on both sides
Pedestrian Ramps:
Van Ramps:

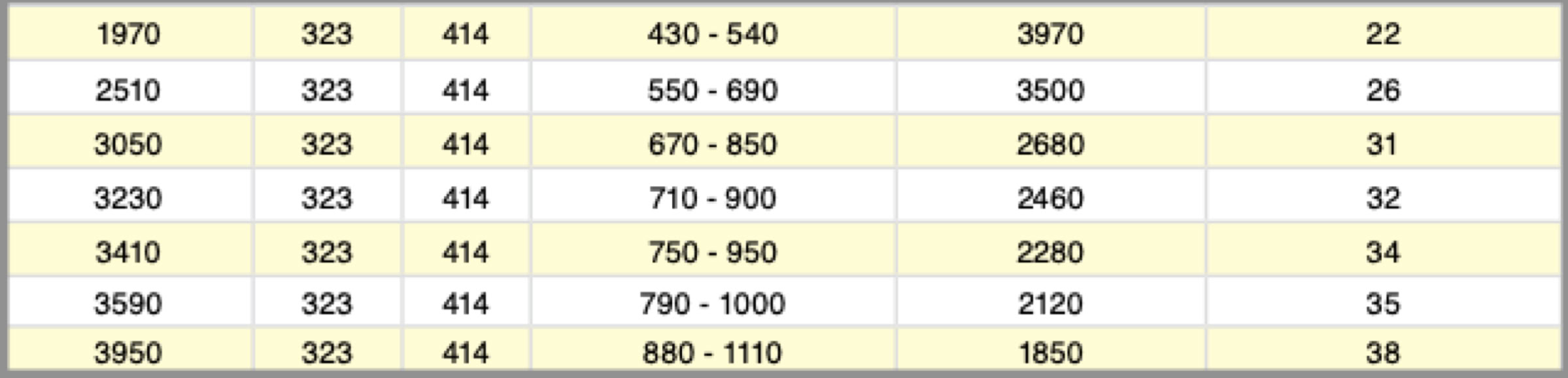

Standard Ramp Sizes (other sizes available on request)
