Loading Ramps -
Low Loader Ramps
Standard Ramp Sizes (other sizes available on request)
Low Loader Ramps - Type VFR 134

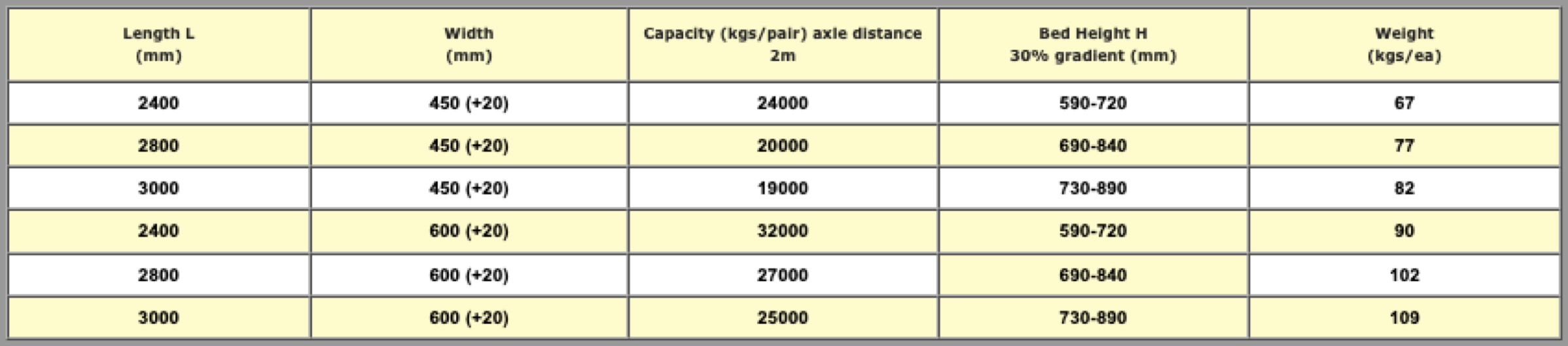

(See table below for sizes and capacities)
VFR 134

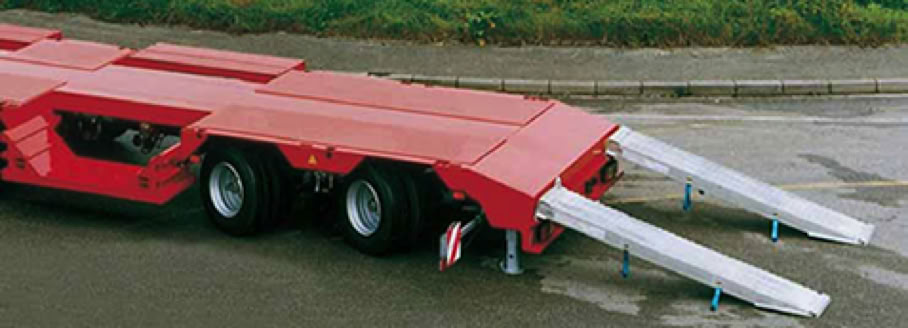

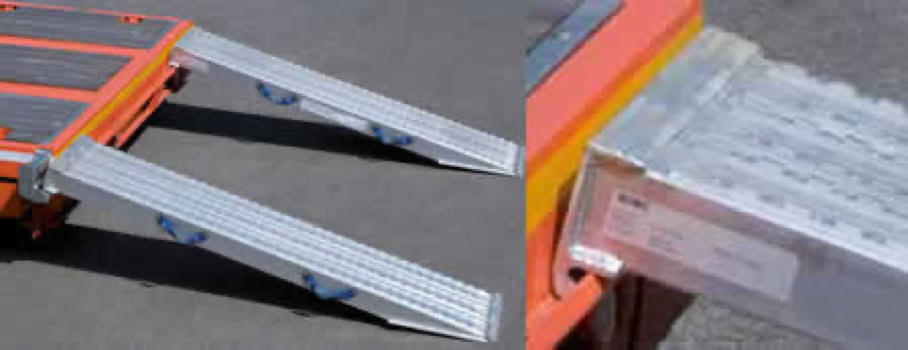

These ramps can be used when loading machines with pneumatic tyres sold wheels, and rubber or steel track. The heavy duty profile and high grade alumni, used in our VFR 134 ramps ensures durability even when loading steel track machinery.
These ramps can be supplied with a hook-on option or hinged to take a 60mm bright steel bar. For heater winged ramps we recommend our spring assistance system.
VFR 134 - Bottom Hook
VFR 134 - Bottom Hook plan
VFR 134 - Hinge fitting
VFR 134 - 4 Profiles wide (600mm)
VFR 134 - 3 Profiles wide (450mm)
Connection & profile options
