Bridge Plates -

Drawbridge Type FBT

(See table below for sizes and capacities)

Type FBT

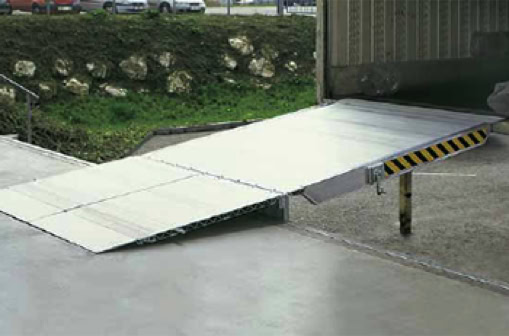

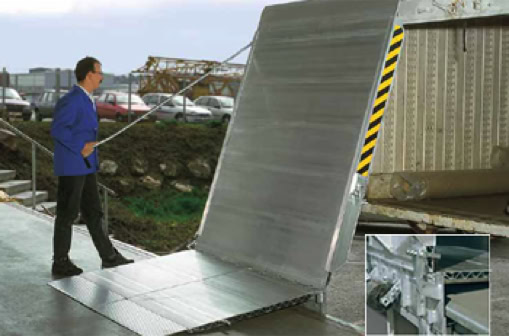

The FBT is a 2-piece Aluminium drawbridge leveler

This split level platform has been designed for use on low docks or when using machinery with small wheels or low clearance.

The FBT is ideal for unloading standing trailers or containers.

FBT drawbridge leveller:

 - is available in lengths of up to 3700mm

- supports height differences of up to 460mm between the dock and lorry

 - has a load capacity of up to 3700kgs

Drawbridge levelers -

Trench/gangway -

Step/Pipe Ramps -

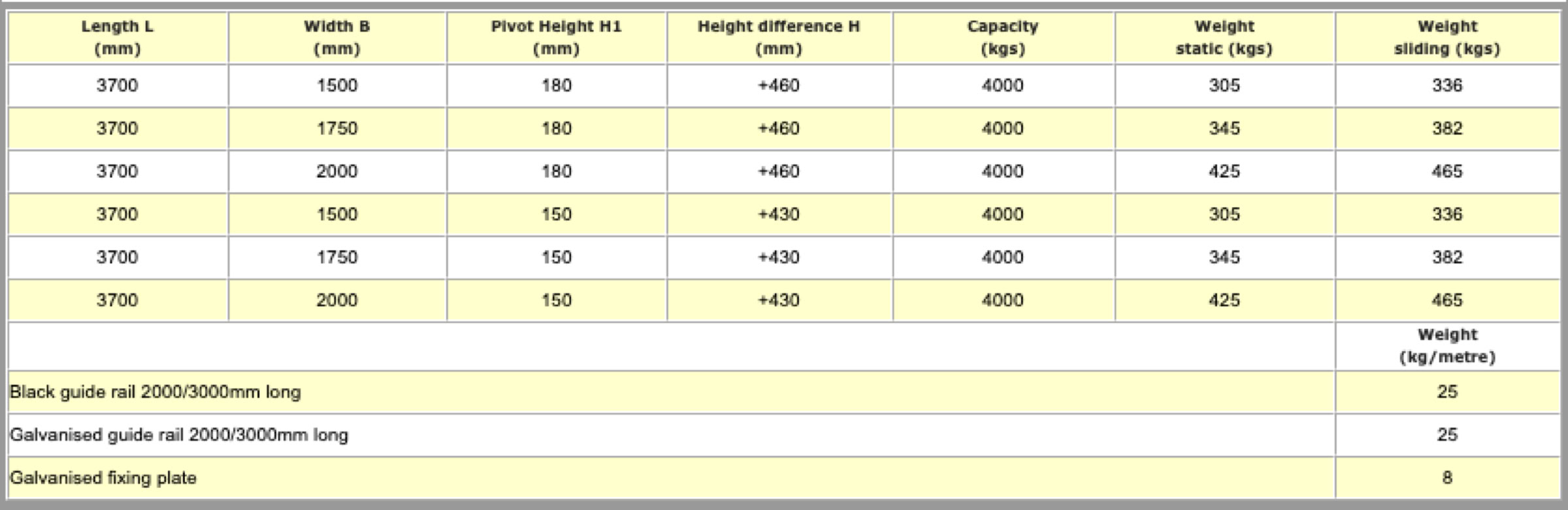

Standard Sizes (other sizes available on request)
