Aluminium Trench ramp - Type BSS
Products > Bridge Plates & Drawbridges > Trench ramp

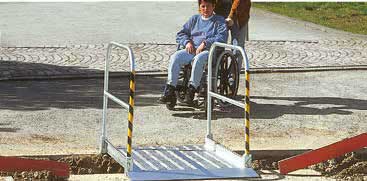

Aluminium Trench Ramp
Click on small images to enlarge
Aluminium Trench Ramp Aluminium Trench Ramp Aluminium Trench Ramp
With this aluminium bridge you can cross trenches safely.
The robust aluminum construction provides:
  • low weight
  • high slip-resistance (R 12) by special punching of the tread
  • water can run and dirt can fall through the punching
  • weatherproof
  • maintenance-free
  • folding aluminium railing, height 1000 mm
  • Up stand height 100 mm
  • wedge profile on both sides for a stepless transition
Also see

Gangway ramp
Gangway ramp

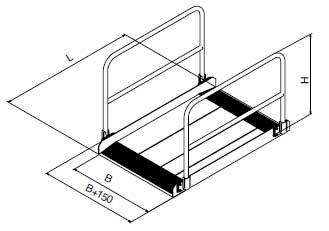

Section & Plan Details
Profile with one curb
Standard Ramp Sizes
Type
Length
L (mm)
Width
B (mm)
Height
H (mm)
Capacity
(kgs/ea)
Weight
(kgs/ea)
BSS
1585
1000
1000
1500
52
2075
1000
1000
1255
61
2565
1000
1000
925
71
3055
1000
1000
735
80
