Modular Hose Pipe and Cable Ramps

(See table below for sizes and capacities)

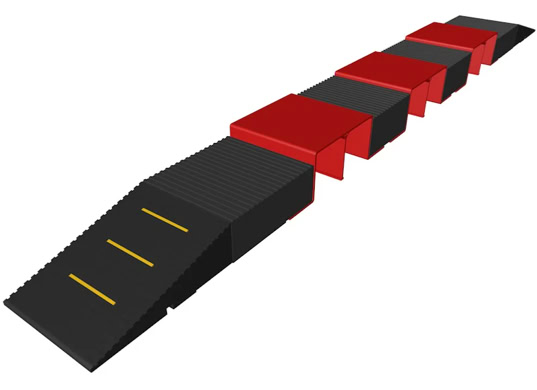

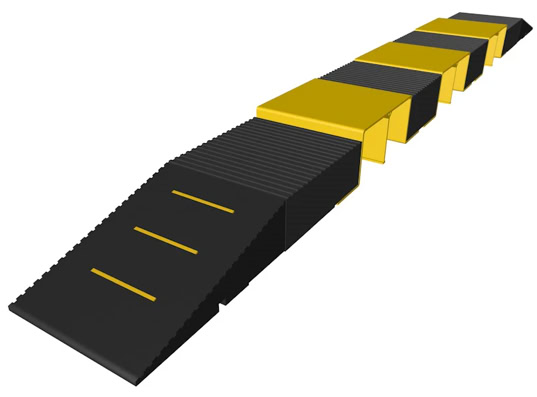

This modular hose and cable ramp consists of a combination of rubber and steel elements to bridge over large hose pipes. Using a combination of elements it is possible to make a ramp 3400mm long which enables most cars to traverse the ramp without breaching.

     - Made from high quality rubber

     - Capacity 12 tonnes

     - Pipe/cable diameter 140/180mm max

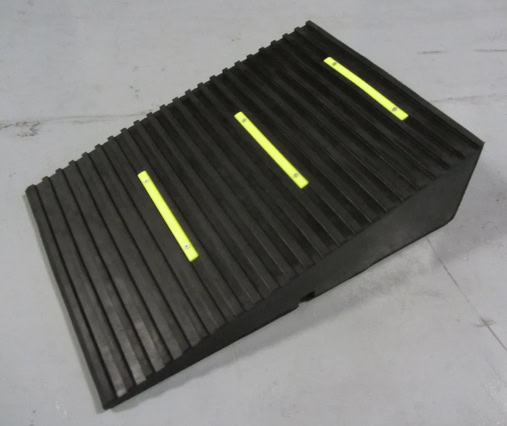

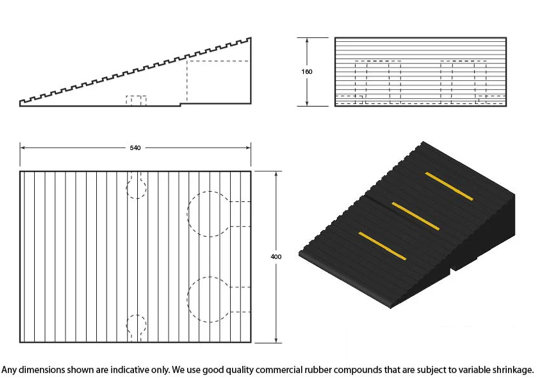

    Wedge

     - Total weight 18kgs

     - 540 x 400 x 160mm high

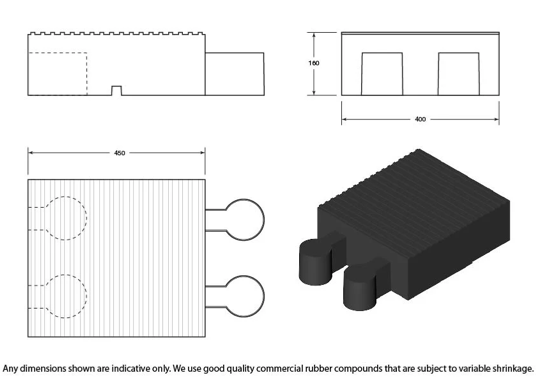

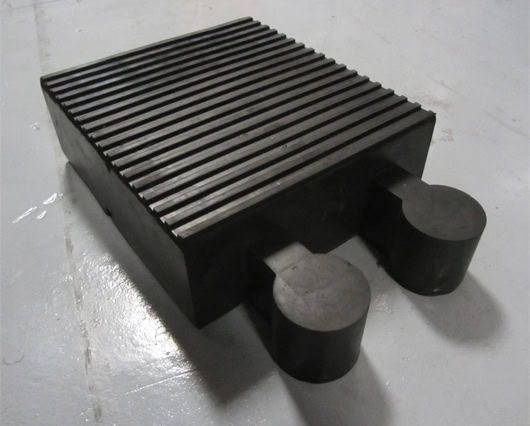

     Block

     - Total weight 33kgs

     - 450 x 400 x 160mm

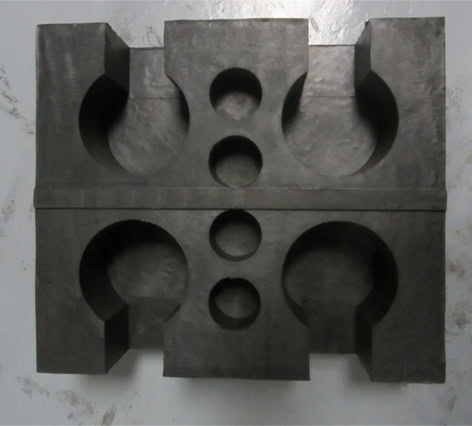

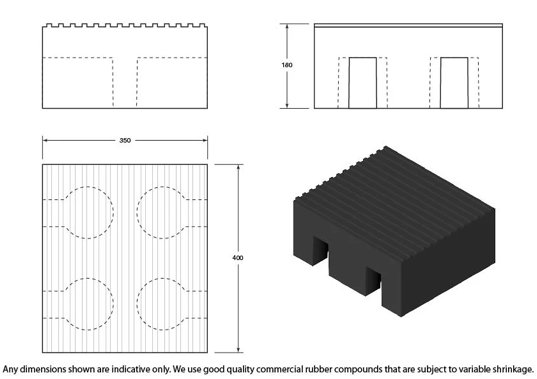

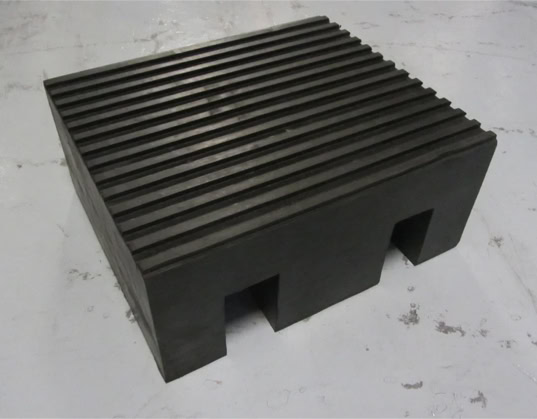

    Joiner

     - Total weight 24kgs

     - 350 x 400 x 180mm

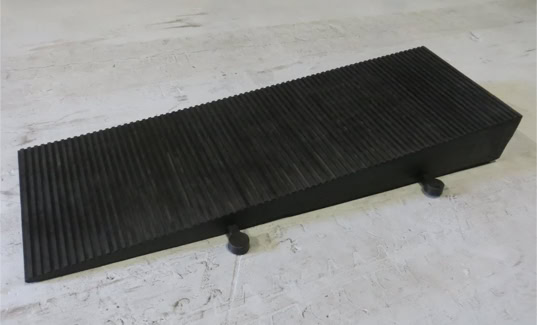

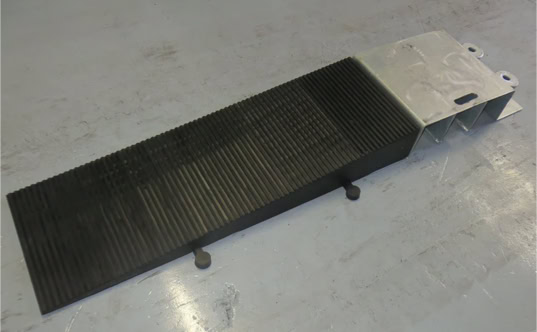

   Long Wedge

     - Total weight 42kgs

     - 1200 x 400 x 155mm

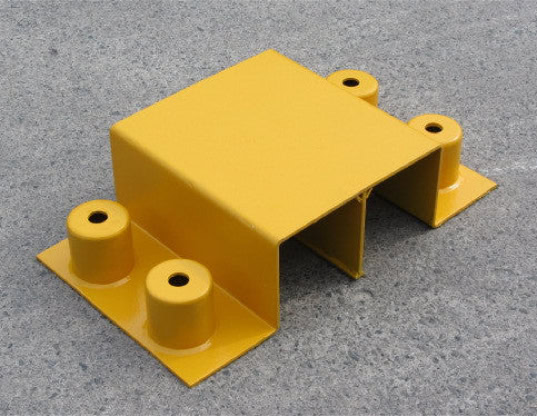

     Steel Bridge (yellow)

     - Weight 32kgs

     - 360 x 400 x 175mm

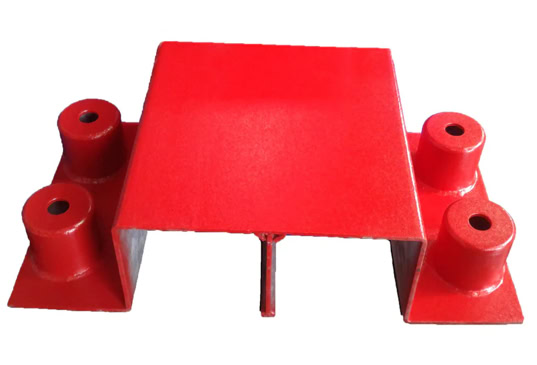

    Steel Bridge (red)

     - Weight 41.5kgs

     - 370 x 400 x 190mm

Note: Not suitable for tracked vehicles
